Cantilever Table Base - 27.5" L
Cantilever Table Base - 27.5" L - Image 2

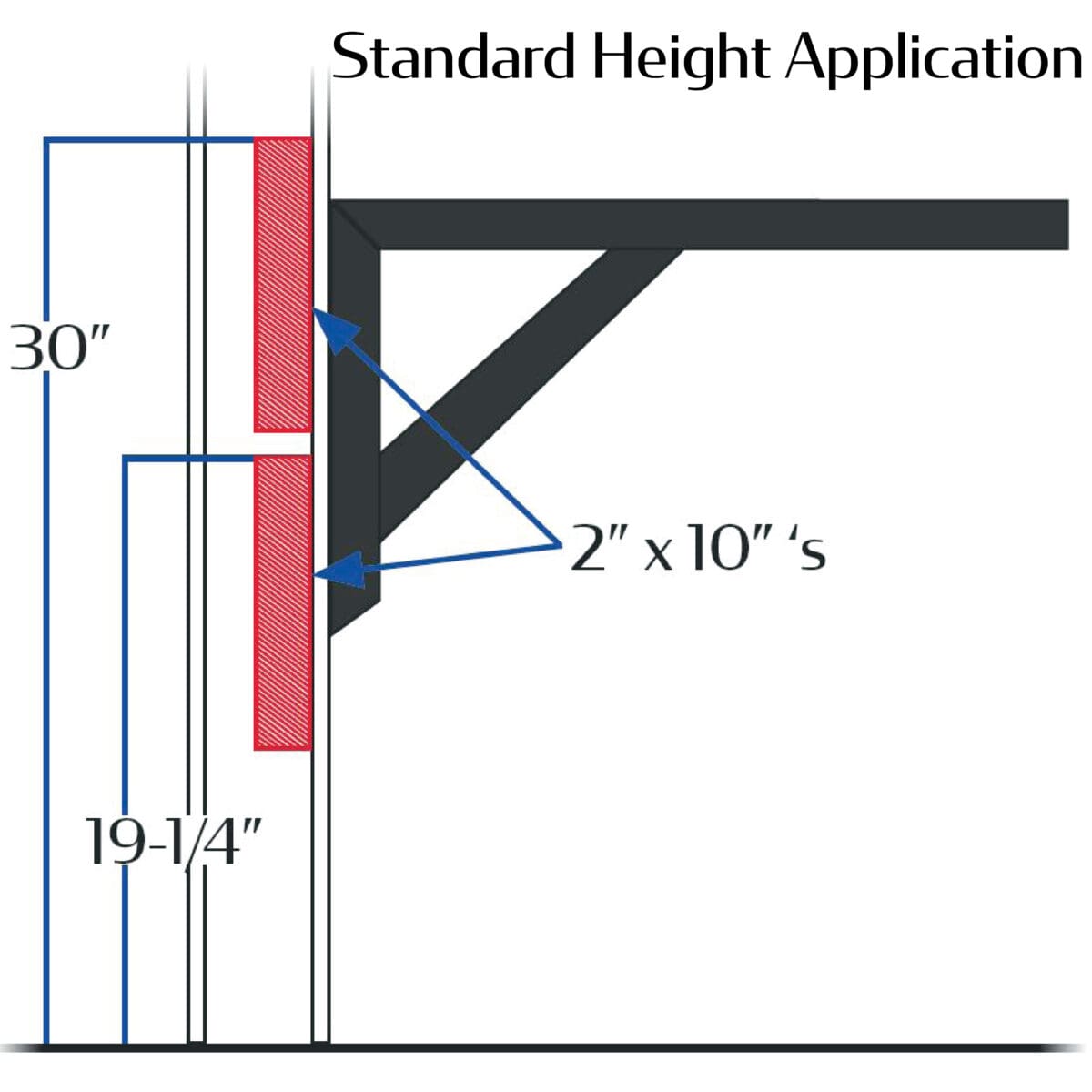

Assembly drawing for standard height 27.5 inch premium cantilever restaurant table base

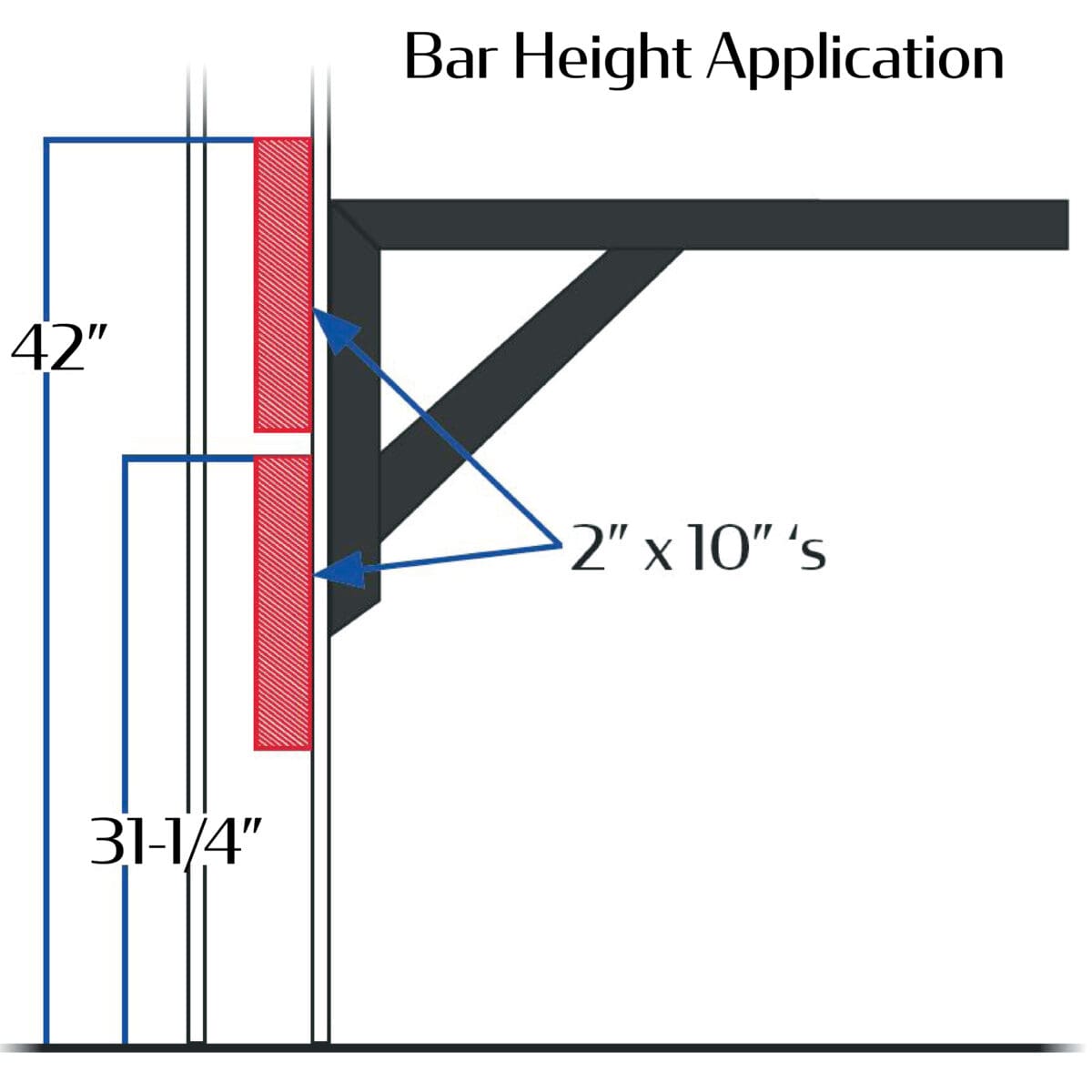

Assembly drawing for bar height 27.5 inch premium cantilever restaurant table base
Assembly drawing for standard height 27.5 inch premium cantilever restaurant table base
Assembly drawing for bar height 27.5 inch premium cantilever restaurant table base

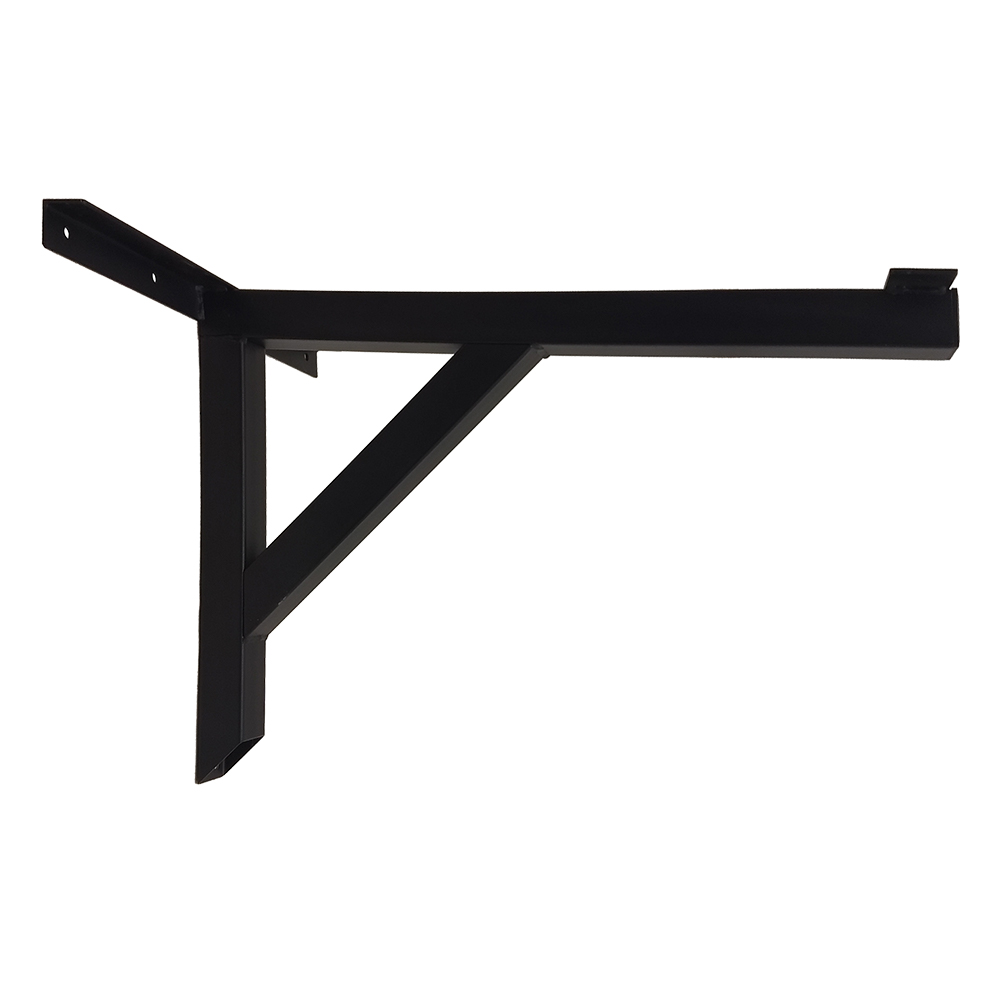

Cantilever Table Base – 27.5″ L

Click here to download the CANTILEVER-PREMIUM Spec Sheet

   Click here to download the Assembly Instructions

- +
Add to quote
SKU: CANTILEVER - PREMIUM Categories: , , Brand:

Description

  • 11 gauge tubular steel construction
  • Black finish
  • 4 drill holes for wall attachment + 4 drill holes each end of base for table top attachment
  • Screws/bolts not included – even if table tops ship together
  • 21″ W x 27.5″ L x 17.5″ H
  • Min. table size: 24″ x 30″, maximum length: 48″ (without pin leg), maximum width: 36″
  • NOTE: Requires reinforced wall (see images) *30″ top 2×10 height for standard height; 42″ top 2×10 height for bar height*

Attention California Residents: Proposition 65 Warning

Additional information

Weight 10 lbs
Dimensions 27.5 × 21 × 17.5 in
Base Finish

Base Material

Base Style

Cantilever Size

Base By Table Size

, , , , , , , , ,

Application
